MTC HC-300 HIGH CAPACITY MOBILE FUEL POLISHING SYSTEM

MTC HC-300 HIGH CAPACITY MOBILE FUEL POLISHING SYSTEM

MTC HC-300 HIGH CAPACITY MOBILE FUEL POLISHING SYSTEM

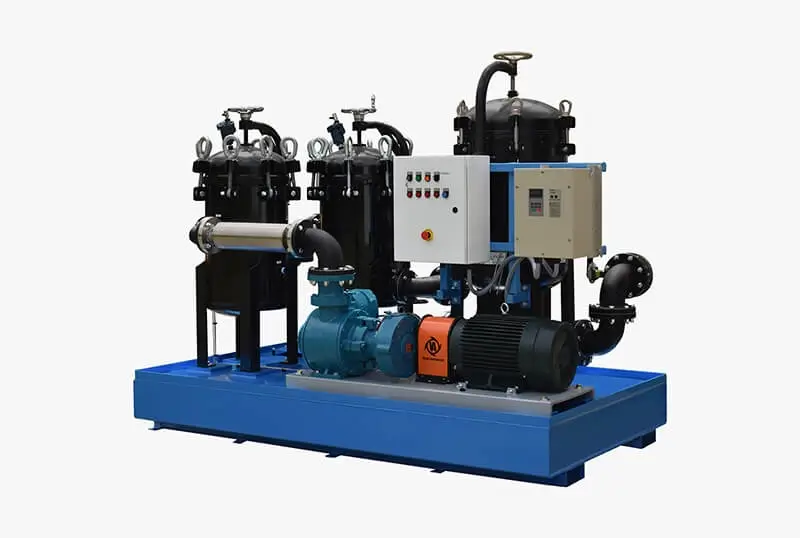

The MTC HC-300 Mobile Fuel Polishing System is designed to efficiently and safely clean and restore fuel to pristine condition. The MTC HC-300 incorporates a multi-stage filtration process that reconditions, stabilizes and decontaminates diesel, biofuels, light oils and hydraulic fluids.

The key to ensuring optimal fuel quality requires the removal and prevention of fuel contamination through filtration, the separation and removal of both free and emulsified water, and the conditioning of fuel to reduce the size of particulate clusters.  All of these processes together, configured in a kidney loop fashion to maximize the amount of fuel being polished, is exceptionally executed utilizing an AXI Fuel Polishing System.

The MTC HC-300 Mobile Fuel Polishing System is designed to efficiently and safely clean and restore fuel to pristine condition. The MTC HC-300 incorporates a multi-stage filtration process that reconditions, stabilizes and decontaminates diesel, biofuels, light oils and hydraulic fluids. All MTC HC-300 systems are specifically designed for tanks with contaminated fuel that require the removal of water, sediment, and sludge accumulation.

Managing Multiple Systems or Large Facilities?

Check out AXI’s line of Fuel Transfer Systems, Day Tanks, and Master Control Panels that tie your systems all together — or click on the button to have one of our Engineers assist you in building a system for your specific needs.

  • Flow Rate

    300 GPM (1135.62 LPM)

  • Primary Filter

    Four Bag Filter Vessel, Carbon Steel, Davit arm swing cover, Stainless Steel liner basket for use with filter bags

  • Filter Bags

    Replaceable Filter Bags 5μ – 800 μ

  • Secondary Filter

    2 – Carbon Steel Filter Housing, Quick release 4-Bolt Swing Cover, Drain valve, & Air Vent

  • Fuel Conditioner

    Inline 4” Magnetic Fuel Conditioner

  • Smart Filtration Controller

    Fully Automated UL508a SMART Filtration Controller (Optional Digital Text Readout)

  • Instrumentation & Automation

    Vacuum Gauges on Primary Filter, Pressure Gauge on Pump Discharge Pressure, Gauges on Secondary Filter(Optional AXI Watect 550, Water Sensor Alarm Module)

  • Pump

    Blackmer 4”, Sliding-vane, Positive Displacement, Viton Seals, 15HP Motor, 18.3 FLA

  • Ports

    4” Inlet, 4” Outlet

  • Connectors

    Cam & Groove Fittings with Covers

  • Hoses

    4” – 25 ft Suction Hose | 4” – 25 ft Discharge Hose

  • Skid

    Powder Coated Carbon Steel, Filter Service Deck, and 200 Gallon Drip Tray with Drain

  • Weight

    ≈ 5500 lbs (2495 kg)

  • Caution

    Not for use with fluids that have a flash point below 100°F

MTC HC-300 Series Features:
  • High Capacity Multi-stage Water Removal, Particulate Filtration, and Fuel Conditioning
  • Large Contaminant Holding Capacity
  • Robust Compact Industrial Design
  • Liquid-Filled Vacuum and Pressure Gauges
  • Smart Filtration Systems Controller
  • High Flow Rate Vane Pump with High-Efficiency Motor

All AXI Fuel Systems are engineered for quality and can be customized to your specifications. AXI customized Pre-Filter Assemblies have a large contaminant holding capacity to save time and accelerate the cleaning of tanks with large amounts of sludge, rust, scale and sediments. They are equipped with a basket strainer that accommodates a variety of easy-to-replace filter bags from 1-800 micron. AXI Spill Containment Berms protect the environment and are industrial quality, easy to use and fold up for storage and transportation. AFC-705 Fuel Catalyst is a broad-spectrum fuel additive concentrate that enhances the breakdown and removal of sludge, slime and bio-fouling from tank walls and baffles.

AXI International makes every effort to assure that its products meet high quality and durability standards and expressly warrants the products described herein against defects in material and workmanship for a period of one (1) year from the date of purchase. This warranty is not intended to supplant normal inspection, care and service of the products covered by the user, and shall not obligate AXI International to provide free service during the warranty period to correct breakage, maladjustment, or other dif culties arising out of abuse, misuse, or improper care and maintenance of such products. Our express warranty is subject to the following terms and conditions:

This warranty shall only extend to and is only for the benefit of original purchaser(s), or end customer(s) who use the products covered hereby and subject to the terms and conditions herein. This warranty is not an on-site warranty. Travel requests will be at the discretion of AXI International. Defective systems and ancillary products will require a return authorization number and shipping to AXI International’s factory in Fort Myers, FL. Any warranty claim received by AXI International after one (1) year from the date of purchase will not be honored even if it is claimed that the defect occurred prior to one (1) year from the date of purchase. Claims outside of this one (1) year period, and for claims not listed within, payment, repair, or service will be awarded at the sole and exclusive discretion of AXI International.

This Warranty shall NOT apply to the following:

1. Damage or deterioration caused by normal wear and tear.

2. Failures caused by any external cause or act of God, such as accident, collision, theft, vandalism, riots, wars,  re, freezing, lightning, earth-quakes, windstorms, hail, volcanic eruptions,  oods, tornados or hurricanes.

3. Failures due to alterations, adjustments, unauthorized changes to the product(s), neglect or improper storage, repair and/or maintenance.

4. Failures due to abuse or application of the product(s) for uses other than for which it/they are designed or intended by AXI International, including but  not limited to, improper installation or location in a harsh, corrosive or saltwater environment.

5. Failures resulting from attachments, accessory items, and parts not sold by AXI International.

6. Repairs by any party other than those authorized by AXI International.

7. Failures resulting from user’s delay in making the product available for inspection by AXI International after notifying AXI International of a potential product problem.

8. Cosmetic damage, discoloration, rusting, corrosion or scratches from applied paint.

9. Replacement of consumables such as, but not limited to, fuses, lamps,  lters, etc.

10. Additional expenses for repair after normal business hours, i.e., overtime or holiday labor rates.

11. Expenses for rental of equipment during downtime and/or performance of warranty repairs.

12. Expenses related to investigating performance complaints and/or troubleshooting where no manufacturing defect is found.

In addition to the limitations above, this warranty shall not apply to products (1) which have been tampered with, altered or repaired by anyone other than AXI International without the express prior written consent of AXI International (2) which have been installed improperly or subject to misuse, abuse, accident, negligence of others, improper operation or maintenance, neglect or modi cation, or (3) which have had the serial number altered, defaced or removed.

The liability of AXI International under this warranty is limited to the repair or replacement of the defective product. AXI International assumes NO LIABILITY for labor charges or other costs incurred by any purchaser incidental to the service, adjustment, repair, return, removal or replacement of products. AXI INTERNATIONAL ASSUMES NO LIABILITY FOR ANY GENERAL , SPECIAL, INCIDENTAL, CONSEQUENTIAL, CONTINGENT OR OTHER DAMAGES UNDER ANY WARRANTY, EXPRESS OR IMPLIED, OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR OTHERWISE, WITH THE RESPECT TO THE PRODUCTS COVERED BY THIS WARRANTY POLICY, EXCEPT AS EXPRESSLY PROVIDED FOR HEREIN. AXI INTERNATIONAL ASSUMES NO LIABILITY FOR ANY GENERAL, SPECIAL, INCIDENTAL, CONSEQUENTIAL, CONTINGENT OR OTHER DAMAGES EVEN IF SUCH DAMAGES ARE A DIRECT RESULT OF

AXI INTERNATIONAL’S NEGLIGENCE. NO EMPLOYEE, AGENT, REPRESENTATIVE OR DISTRIBUTOR IS AUTHORIZED TO MAKE ANY WARRANTY ON BEHALF OF AXI INTERNATIONAL OTHER THAN THE EXPRESS WARRANTY PROVIDED FOR HEREIN.

AXI International reserves the right at any time to make changes in the design, material, function and specifications of its products. Any such changes shall not obligate AXI International to make similar changes in such products that were previously manufactured.

To the fullest extent permitted by law, any claims against AXI International are limited to the remedies as expressly set forth in this warranty and any other further claims, such as but not limited to, compensation for any damage incurred other than to the AXI International product, are hereby excluded.

Warranty Claim Procedure

To make a claim under this warranty, please call AXI International at +1-239-690-9589 or 1-877-425-4239, and provide: Name and location where unit was purchased, the date and receipt of purchase, model number, serial number, and a detailed explanation of the problem you are experiencing. The Customer Service Representative may, at the discretion of AXI International, arrange for a Field Engineer to inspect your system. If the inspection reveals a defect covered by its limited warranty, AXI International will either repair or replace the defective parts or products. AXI International assumes no liability, if upon inspection, AXI International or its representative determines that there is no defect or that the damage to the system resulted from causes not within the scope of this limited warranty and customer shall be responsible standard rates incurred by AXI International, as established from time to time by AXI International.

For service and sales, please contact AXI International:

AXI International  |  5400 Division Drive Fort Myers, FL 33905

Tel: +1-239-690-9589  |  Toll Free: +1-877-425-4239  |  Fax: +1-239-690-1195

Email: [email protected]  |  Internet: www.axi-international.com

DESCRIPTION

The key to ensuring optimal fuel quality requires the removal and prevention of fuel contamination through filtration, the separation and removal of both free and emulsified water, and the conditioning of fuel to reduce the size of particulate clusters.  All of these processes together, configured in a kidney loop fashion to maximize the amount of fuel being polished, is exceptionally executed utilizing an AXI Fuel Polishing System.

The MTC HC-300 Mobile Fuel Polishing System is designed to efficiently and safely clean and restore fuel to pristine condition. The MTC HC-300 incorporates a multi-stage filtration process that reconditions, stabilizes and decontaminates diesel, biofuels, light oils and hydraulic fluids. All MTC HC-300 systems are specifically designed for tanks with contaminated fuel that require the removal of water, sediment, and sludge accumulation.

Managing Multiple Systems or Large Facilities?

Check out AXI’s line of Fuel Transfer Systems, Day Tanks, and Master Control Panels that tie your systems all together — or click on the button to have one of our Engineers assist you in building a system for your specific needs.

SPECIFICATIONS
  • Flow Rate

    300 GPM (1135.62 LPM)

  • Primary Filter

    Four Bag Filter Vessel, Carbon Steel, Davit arm swing cover, Stainless Steel liner basket for use with filter bags

  • Filter Bags

    Replaceable Filter Bags 5μ – 800 μ

  • Secondary Filter

    2 – Carbon Steel Filter Housing, Quick release 4-Bolt Swing Cover, Drain valve, & Air Vent

  • Fuel Conditioner

    Inline 4” Magnetic Fuel Conditioner

  • Smart Filtration Controller

    Fully Automated UL508a SMART Filtration Controller (Optional Digital Text Readout)

  • Instrumentation & Automation

    Vacuum Gauges on Primary Filter, Pressure Gauge on Pump Discharge Pressure, Gauges on Secondary Filter(Optional AXI Watect 550, Water Sensor Alarm Module)

  • Pump

    Blackmer 4”, Sliding-vane, Positive Displacement, Viton Seals, 15HP Motor, 18.3 FLA

  • Ports

    4” Inlet, 4” Outlet

  • Connectors

    Cam & Groove Fittings with Covers

  • Hoses

    4” – 25 ft Suction Hose | 4” – 25 ft Discharge Hose

  • Skid

    Powder Coated Carbon Steel, Filter Service Deck, and 200 Gallon Drip Tray with Drain

  • Weight

    ≈ 5500 lbs (2495 kg)

  • Caution

    Not for use with fluids that have a flash point below 100°F

SYSTEM FEATURES
MTC HC-300 Series Features:
  • High Capacity Multi-stage Water Removal, Particulate Filtration, and Fuel Conditioning
  • Large Contaminant Holding Capacity
  • Robust Compact Industrial Design
  • Liquid-Filled Vacuum and Pressure Gauges
  • Smart Filtration Systems Controller
  • High Flow Rate Vane Pump with High-Efficiency Motor
FILTRATION
SYSTEM OPTIONS

All AXI Fuel Systems are engineered for quality and can be customized to your specifications. AXI customized Pre-Filter Assemblies have a large contaminant holding capacity to save time and accelerate the cleaning of tanks with large amounts of sludge, rust, scale and sediments. They are equipped with a basket strainer that accommodates a variety of easy-to-replace filter bags from 1-800 micron. AXI Spill Containment Berms protect the environment and are industrial quality, easy to use and fold up for storage and transportation. AFC-705 Fuel Catalyst is a broad-spectrum fuel additive concentrate that enhances the breakdown and removal of sludge, slime and bio-fouling from tank walls and baffles.

WARRANTY

AXI International makes every effort to assure that its products meet high quality and durability standards and expressly warrants the products described herein against defects in material and workmanship for a period of one (1) year from the date of purchase. This warranty is not intended to supplant normal inspection, care and service of the products covered by the user, and shall not obligate AXI International to provide free service during the warranty period to correct breakage, maladjustment, or other dif culties arising out of abuse, misuse, or improper care and maintenance of such products. Our express warranty is subject to the following terms and conditions:

This warranty shall only extend to and is only for the benefit of original purchaser(s), or end customer(s) who use the products covered hereby and subject to the terms and conditions herein. This warranty is not an on-site warranty. Travel requests will be at the discretion of AXI International. Defective systems and ancillary products will require a return authorization number and shipping to AXI International’s factory in Fort Myers, FL. Any warranty claim received by AXI International after one (1) year from the date of purchase will not be honored even if it is claimed that the defect occurred prior to one (1) year from the date of purchase. Claims outside of this one (1) year period, and for claims not listed within, payment, repair, or service will be awarded at the sole and exclusive discretion of AXI International.

This Warranty shall NOT apply to the following:

1. Damage or deterioration caused by normal wear and tear.

2. Failures caused by any external cause or act of God, such as accident, collision, theft, vandalism, riots, wars,  re, freezing, lightning, earth-quakes, windstorms, hail, volcanic eruptions,  oods, tornados or hurricanes.

3. Failures due to alterations, adjustments, unauthorized changes to the product(s), neglect or improper storage, repair and/or maintenance.

4. Failures due to abuse or application of the product(s) for uses other than for which it/they are designed or intended by AXI International, including but  not limited to, improper installation or location in a harsh, corrosive or saltwater environment.

5. Failures resulting from attachments, accessory items, and parts not sold by AXI International.

6. Repairs by any party other than those authorized by AXI International.

7. Failures resulting from user’s delay in making the product available for inspection by AXI International after notifying AXI International of a potential product problem.

8. Cosmetic damage, discoloration, rusting, corrosion or scratches from applied paint.

9. Replacement of consumables such as, but not limited to, fuses, lamps,  lters, etc.

10. Additional expenses for repair after normal business hours, i.e., overtime or holiday labor rates.

11. Expenses for rental of equipment during downtime and/or performance of warranty repairs.

12. Expenses related to investigating performance complaints and/or troubleshooting where no manufacturing defect is found.

In addition to the limitations above, this warranty shall not apply to products (1) which have been tampered with, altered or repaired by anyone other than AXI International without the express prior written consent of AXI International (2) which have been installed improperly or subject to misuse, abuse, accident, negligence of others, improper operation or maintenance, neglect or modi cation, or (3) which have had the serial number altered, defaced or removed.

The liability of AXI International under this warranty is limited to the repair or replacement of the defective product. AXI International assumes NO LIABILITY for labor charges or other costs incurred by any purchaser incidental to the service, adjustment, repair, return, removal or replacement of products. AXI INTERNATIONAL ASSUMES NO LIABILITY FOR ANY GENERAL , SPECIAL, INCIDENTAL, CONSEQUENTIAL, CONTINGENT OR OTHER DAMAGES UNDER ANY WARRANTY, EXPRESS OR IMPLIED, OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR OTHERWISE, WITH THE RESPECT TO THE PRODUCTS COVERED BY THIS WARRANTY POLICY, EXCEPT AS EXPRESSLY PROVIDED FOR HEREIN. AXI INTERNATIONAL ASSUMES NO LIABILITY FOR ANY GENERAL, SPECIAL, INCIDENTAL, CONSEQUENTIAL, CONTINGENT OR OTHER DAMAGES EVEN IF SUCH DAMAGES ARE A DIRECT RESULT OF

AXI INTERNATIONAL’S NEGLIGENCE. NO EMPLOYEE, AGENT, REPRESENTATIVE OR DISTRIBUTOR IS AUTHORIZED TO MAKE ANY WARRANTY ON BEHALF OF AXI INTERNATIONAL OTHER THAN THE EXPRESS WARRANTY PROVIDED FOR HEREIN.

AXI International reserves the right at any time to make changes in the design, material, function and specifications of its products. Any such changes shall not obligate AXI International to make similar changes in such products that were previously manufactured.

To the fullest extent permitted by law, any claims against AXI International are limited to the remedies as expressly set forth in this warranty and any other further claims, such as but not limited to, compensation for any damage incurred other than to the AXI International product, are hereby excluded.

Warranty Claim Procedure

To make a claim under this warranty, please call AXI International at +1-239-690-9589 or 1-877-425-4239, and provide: Name and location where unit was purchased, the date and receipt of purchase, model number, serial number, and a detailed explanation of the problem you are experiencing. The Customer Service Representative may, at the discretion of AXI International, arrange for a Field Engineer to inspect your system. If the inspection reveals a defect covered by its limited warranty, AXI International will either repair or replace the defective parts or products. AXI International assumes no liability, if upon inspection, AXI International or its representative determines that there is no defect or that the damage to the system resulted from causes not within the scope of this limited warranty and customer shall be responsible standard rates incurred by AXI International, as established from time to time by AXI International.

For service and sales, please contact AXI International:

AXI International  |  5400 Division Drive Fort Myers, FL 33905

Tel: +1-239-690-9589  |  Toll Free: +1-877-425-4239  |  Fax: +1-239-690-1195

Email: [email protected]  |  Internet: www.axi-international.com
