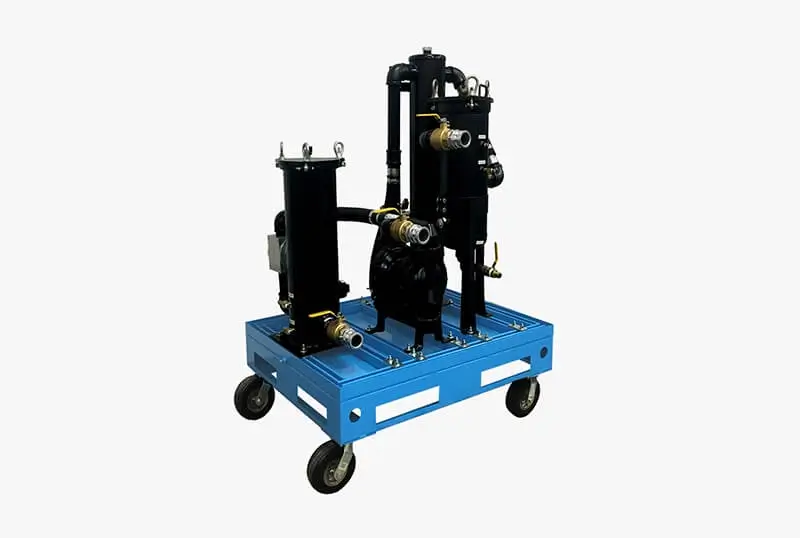

MTC HC-50 HIGH CAPACITY MOBILE FUEL POLISHING SYSTEM

MTC HC-50 HIGH CAPACITY MOBILE FUEL POLISHING SYSTEM

High capacity mobile fuel polishing cart high capacity system for diesel fuel management and filtration by AXI International.

MTC HC-50 HIGH CAPACITY MOBILE FUEL POLISHING SYSTEM

The MTC HC-50 Mobile Fuel Polishing System is designed to efficiently and safely clean and restore fuel to pristine condition. The MTC HC-50 incorporates a multi-stage filtration process that reconditions, stabilizes and decontaminates diesel, biofuels, light oils and hydraulic fluids.

How Do Fuel Polishing Systems Work?

The key to ensuring optimal fuel quality requires the removal and prevention of fuel contamination through filtration, the separation and removal of both free and emulsified water, and the conditioning of fuel to reduce the size of particulate clusters.  All of these processes together, configured in a kidney loop fashion to maximize the amount of fuel being polished, is exceptionally executed utilizing an AXI Fuel Polishing System.

The MTC HC-50 Mobile Fuel Polishing System is designed to efficiently and safely clean and restore fuel to pristine condition. The MTC HC-50 incorporates a multi-stage filtration process that reconditions, stabilizes and decontaminates diesel, biofuels, light oils and hydraulic fluids. All MTC HC-50 systems are specifically designed for tanks with contaminated fuel that require the removal of water, sediment, and sludge accumulation.

Managing Multiple Systems or Large Facilities?

Check out AXI’s line of Fuel Transfer Systems, Day Tanks, and Master Control Panels that tie your systems all together — or click on the button to have one of our Engineers assist you in building a system for your specific needs.

  • Flow Rate

    Adjustable 25 GPM to 75 GPM (94.6 LPM to 284 LPM)

  • Primary Filter

    Carbon Steel Pre-Filter Housing, Quick Release 3-Bolt Swing Cover, Drain Valve & Air Vent, Perforated SS Strainer Basket 9/64” (35mm) for use with Filter Bags

  • Filter Bags

    Replaceable Filter Bags 1 – 800µ

  • Secondary Fine Filter

    Carbon Steel Filter Housing, Quick release 3-Bolt Swing Cover, Drain valve, & Air Vent

  • Filter Cartridges

    Particulate Filter 2-30µ Water Block Filters 5, 10, 30µ Absolute Microglass Filters 3-10µ

  • Water Separator

    AXI FP-90 With Drain Valve and Air Vent Port

  • Fuel Conditioner

    LG-X 4000 Inline Magnetic Fuel Conditioner

  • Smart Filtration Controller

    SFC-55 Controller

  • Instrumentation & Automation

    Vacuum Gauges on Primary Filter, Pressure Gauge on Pump Discharge Pressure, Gauges on Secondary Filter, AXI Watect 550, Water Sensor Alarm Module

  • Pump

    Adjustable Flow Rate Air Driven, Double Diaphram Pump 50 GPM – 25 SCFM @ 90psi 70 GPM – 50 SCFM @ 90psi 1/2” Air Hose Connection

  • Ports

    2″ Cam and Groove In, 2″ Cam and Groove Out

  • Connectors

    Cam & Groove Fittings with Covers

  • Hoses

    2” – 25 ft Clear Suction Hose, 2” – 25 ft Discharge Hose

  • Skid

    Powder Coated Carbon Steel, Lifting Eyes & Forklift Channels, and Drip Tray with Drain

  • Dimensions

    59″ x 36″ x 45″ (150 x 91 x 114 cm)

  • Weight

    ≈ 630 lbs (286 kg)

  • Caution

    Not for use with fluids that have a flash point below 100°F

MTC HC-50 Series Features:
  • High Capacity Multi-stage Water Removal, Particulate Filtration, and Fuel Conditioning
  • Multiple Discharge and Sampling Ports
  • Large Contaminant Holding Capacity
  • Robust Compact Industrial Design
  • Liquid-Filled Vacuum and Pressure Gauges
  • AXI Watect Water Sensor
  • PLC Smart Filtration Systems Controller
  • Adjustable Flow Rate pump with high-efficiency motor

All AXI Fuel Systems are engineered for quality and can be customized to your specifications. AXI customized Pre-Filter Assemblies have a large contaminant holding capacity to save time and accelerate the cleaning of tanks with large amounts of sludge, rust, scale and sediments. They are equipped with a basket strainer that accommodates a variety of easy-to-replace filter bags from 1-800 micron. AXI Spill Containment Berms protect the environment and are industrial quality, easy to use and fold up for storage and transportation. AFC-710 Fuel Catalyst is a broad-spectrum tier 4 compliant fuel additive concentrate that enhances the breakdown and removal of sludge, slime, and bio-fouling from tank walls and baffles.

DESCRIPTION

How Do Fuel Polishing Systems Work?

The key to ensuring optimal fuel quality requires the removal and prevention of fuel contamination through filtration, the separation and removal of both free and emulsified water, and the conditioning of fuel to reduce the size of particulate clusters.  All of these processes together, configured in a kidney loop fashion to maximize the amount of fuel being polished, is exceptionally executed utilizing an AXI Fuel Polishing System.

The MTC HC-50 Mobile Fuel Polishing System is designed to efficiently and safely clean and restore fuel to pristine condition. The MTC HC-50 incorporates a multi-stage filtration process that reconditions, stabilizes and decontaminates diesel, biofuels, light oils and hydraulic fluids. All MTC HC-50 systems are specifically designed for tanks with contaminated fuel that require the removal of water, sediment, and sludge accumulation.

Managing Multiple Systems or Large Facilities?

Check out AXI’s line of Fuel Transfer Systems, Day Tanks, and Master Control Panels that tie your systems all together — or click on the button to have one of our Engineers assist you in building a system for your specific needs.

SPECIFICATIONS
  • Flow Rate

    Adjustable 25 GPM to 75 GPM (94.6 LPM to 284 LPM)

  • Primary Filter

    Carbon Steel Pre-Filter Housing, Quick Release 3-Bolt Swing Cover, Drain Valve & Air Vent, Perforated SS Strainer Basket 9/64” (35mm) for use with Filter Bags

  • Filter Bags

    Replaceable Filter Bags 1 – 800µ

  • Secondary Fine Filter

    Carbon Steel Filter Housing, Quick release 3-Bolt Swing Cover, Drain valve, & Air Vent

  • Filter Cartridges

    Particulate Filter 2-30µ Water Block Filters 5, 10, 30µ Absolute Microglass Filters 3-10µ

  • Water Separator

    AXI FP-90 With Drain Valve and Air Vent Port

  • Fuel Conditioner

    LG-X 4000 Inline Magnetic Fuel Conditioner

  • Smart Filtration Controller

    SFC-55 Controller

  • Instrumentation & Automation

    Vacuum Gauges on Primary Filter, Pressure Gauge on Pump Discharge Pressure, Gauges on Secondary Filter, AXI Watect 550, Water Sensor Alarm Module

  • Pump

    Adjustable Flow Rate Air Driven, Double Diaphram Pump 50 GPM – 25 SCFM @ 90psi 70 GPM – 50 SCFM @ 90psi 1/2” Air Hose Connection

  • Ports

    2″ Cam and Groove In, 2″ Cam and Groove Out

  • Connectors

    Cam & Groove Fittings with Covers

  • Hoses

    2” – 25 ft Clear Suction Hose, 2” – 25 ft Discharge Hose

  • Skid

    Powder Coated Carbon Steel, Lifting Eyes & Forklift Channels, and Drip Tray with Drain

  • Dimensions

    59″ x 36″ x 45″ (150 x 91 x 114 cm)

  • Weight

    ≈ 630 lbs (286 kg)

  • Caution

    Not for use with fluids that have a flash point below 100°F

SYSTEM FEATURES
MTC HC-50 Series Features:
  • High Capacity Multi-stage Water Removal, Particulate Filtration, and Fuel Conditioning
  • Multiple Discharge and Sampling Ports
  • Large Contaminant Holding Capacity
  • Robust Compact Industrial Design
  • Liquid-Filled Vacuum and Pressure Gauges
  • AXI Watect Water Sensor
  • PLC Smart Filtration Systems Controller
  • Adjustable Flow Rate pump with high-efficiency motor
FILTRATION
SYSTEM OPTIONS

All AXI Fuel Systems are engineered for quality and can be customized to your specifications. AXI customized Pre-Filter Assemblies have a large contaminant holding capacity to save time and accelerate the cleaning of tanks with large amounts of sludge, rust, scale and sediments. They are equipped with a basket strainer that accommodates a variety of easy-to-replace filter bags from 1-800 micron. AXI Spill Containment Berms protect the environment and are industrial quality, easy to use and fold up for storage and transportation. AFC-710 Fuel Catalyst is a broad-spectrum tier 4 compliant fuel additive concentrate that enhances the breakdown and removal of sludge, slime, and bio-fouling from tank walls and baffles.
