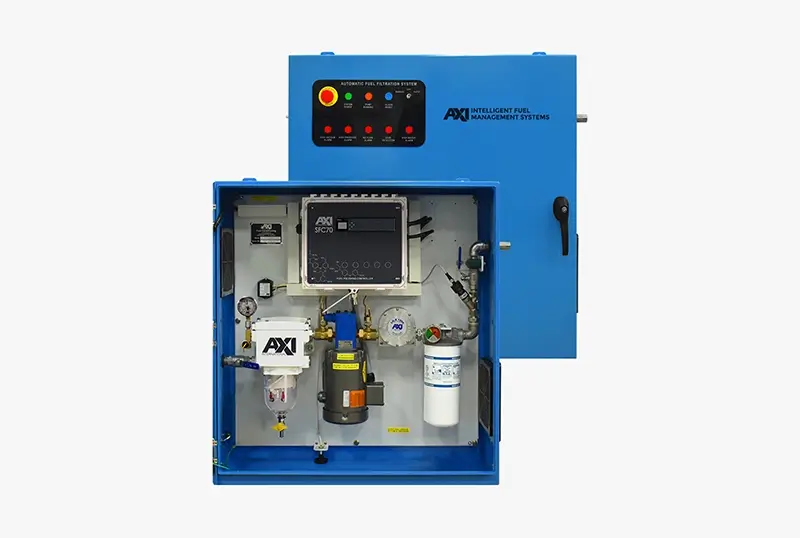

STS 6004 | 7004
Fuel Maintenance System
- Automatically removes contaminants from fuel storage tanks through user-scheduled filtration (4 GPM flow rate)
- Notifies users of routine maintenance or system faults such as needed filters changes or flow restrictions
- NEMA 3R rated enclosure for indoor and outdoor installations
- Drip tray with built-in leak detection
- Field connections for external integrations such as remote monitoring and system shutdown capabilities
- Robust set of available upgrade options
Product Details
Product Specifications
Technical Documents
Troubleshooting
The STS 6004 | 7004 is a programmable, fully automated, fuel maintenance system that removes water, sludge, and other contaminants from fuel storage tanks through routine filtration. The system’s NEMA rated enclosure allows for both outdoor and indoor installations by protecting the system from falling rain, sleet, snow, and external ice formation. With a 4 GPM flow rate, the STS 6004 | 7004 can polish up to 1,920 gallons (7,268 liters) of fuel in a runtime of 8-hours. Robust system upgrade options are available for this system and are outlined below.
System Features:
Automated Filtration
Establish a fuel polishing runtime schedule with up to three start and stop times for each day of the week
Smart System Alarms
Automatic system shutdown with notifications of needed maintenance or system faults
Remote Monitoring
Available system integration with external monitoring systems for observation of system statuses
NEMA 3R Rated Enclosure
Protects system components from falling rain, sleet, snow, and external ice formation
Touchscreen Controller *
Modify runtime schedules and system settings with an intuitive user interface
System Options:
NEMA 4 Rated Enclosure
Gain additional protection against falling dirt, windblown dust, splashing water, and hose-directed water
NEMA 4X Rated Enclosure
Gain additional protection against corrosion with a stainless steel enclosure
Manual Additive Injection
Manually draw additive into the polisher with a dedicated supply port and ball valve
Enclosure Heater
Prevent the build up of condensation inside the system enclosure due to temperature changes
Auto Water Drain (AWD)
Automatically drain water separator of collected water for decreased frequency of maintenance
Pressure Transmitter
Replace standard pressure switch for detailed monitoring of pressure levels in the system
Flow Transmitter
Replace standard flow switch for detailed monitoring of flow rate in the system
Multi-Tank Polishing/Transfer
Polish and transfer fuel between multiple fuel storage tanks
Fuel Heater
Warm up circulated fuel to resist gelling in freezing temperatures
Multi-Point Flow Path *
Add multiple supply and return valves for better tank cleaning coverage
* Only available on the 7000 series system. System upgrade may also be required for certain option combinations.
Nominal Flow Rate
4 GPM/240 GPH (15 LPM/908.5 LPH)
Primary Filter
10 or 30μ Particulate or 60μ Stainless Steel Screen with Centrifugal Water Separator
Secondary Filter
3, 10 or 25μ Fine Filter or 3, 10μ Water Block
Fuel Conditioner
LG-X 1500 Inline Magnetic Conditioner
Pump
1/3 HP Spur Gear Pump
System Controller
Smart Filtration Controller with Safety and Alarm Features
Power *
120V/60Hz/1Ph or 230V/50Hz/1Ph
Plumbing
Black Iron
Ports
3/4” NPT In, 3/4" NPT Out
System Enclosure
NEMA 3R Rated Powder Coated (Standard), NEMA 4, or NEMA 4X Rated Stainless Steel
Controller Enclosure
NEMA 4 and UL408a Rated
Dimensions
≈ 36” x 36“ x 12” (91 x 91 x 30 cm) (H x W x D)
Weight
≈ 290 lbs (131.5 kg)
* 50 Hz configuration decreases nominal flow rate from 4 GPM (15 LPM) to 3.2 GPM (12 LPM)
Please consult the “Troubleshooting” section of the system manual to diagnose any issues you may be experiencing. The manual can be found under the “Technical Documents” tab. If you need additional assistance feel free to reach out via the contact form below or by phone (+1-877-425-4239) during AXI International’s operating hours (Monday – Friday, 8am – 5pm EST).
The STS 6004 | 7004 is a programmable, fully automated, fuel maintenance system that removes water, sludge, and other contaminants from fuel storage tanks through routine filtration. The system’s NEMA rated enclosure allows for both outdoor and indoor installations by protecting the system from falling rain, sleet, snow, and external ice formation. With a 4 GPM flow rate, the STS 6004 | 7004 can polish up to 1,920 gallons (7,268 liters) of fuel in a runtime of 8-hours. Robust system upgrade options are available for this system and are outlined below.
System Features:
Automated Filtration
Establish a fuel polishing runtime schedule with up to three start and stop times for each day of the week
Smart System Alarms
Automatic system shutdown with notifications of needed maintenance or system faults
Remote Monitoring
Available system integration with external monitoring systems for observation of system statuses
NEMA 3R Rated Enclosure
Protects system components from windblown dust and rain, hose directed water, and ice formations
Touchscreen Controller *
Modify runtime schedules and system settings with an intuitive user interface
System Options:
NEMA 4 Rated Enclosure
Gain additional protection against falling dirt, windblown dust, splashing water, and hose-directed water
NEMA 4X Rated Enclosure
Gain additional protection against corrosion with a stainless steel enclosure
Manual Additive Injection
Manually draw additive into the polisher with a dedicated supply port and ball valve
Enclosure Heater
Prevent the build up of condensation inside the system enclosure due to temperature changes
Auto Water Drain (AWD)
Automatically drain water separator of collected water for decreased frequency of maintenance
Pressure Transmitter
Replace standard pressure switch for detailed monitoring of pressure levels in the system
Flow Transmitter
Replace standard flow switch for detailed monitoring of flow rate in the system
Multi-Tank Polishing/Transfer
Polish and transfer fuel between multiple fuel storage tanks
Fuel Heater
Warm up circulated fuel to resist gelling in freezing temperatures
Multi-Point Flow Path *
Add multiple supply and return valves for better tank cleaning coverage
* Only available on the 7000 series system. System upgrade may also be required for certain option combinations.
Nominal Flow Rate
4 GPM/240 GPH (15 LPM/908.5 LPH)
Primary Filter
10 or 30μ Particulate or 60μ Stainless Steel Screen with Centrifugal Water Separator
Secondary Filter
3, 10 or 25μ Fine Filter or 3, 10μ Water Block
Fuel Conditioner
LG-X 1500 Inline Magnetic Conditioner
Pump
1/3 HP Spur Gear Pump
System Controller
Smart Filtration Controller with Safety and Alarm Features
Power *
120V/60Hz/1Ph or 230V/50Hz/1Ph
Plumbing
Black Iron
Ports
3/4” NPT In, 3/4" NPT Out
System Enclosure
NEMA 3R Rated Powder Coated (Standard), NEMA 4, or NEMA 4X Rated Stainless Steel
Controller Enclosure
NEMA 4 and UL408a Rated
Dimensions
≈ 36” x 36“ x 12” (91 x 91 x 30 cm) (H x W x D)
Weight
≈ 290 lbs (131.5 kg)
* 50 Hz configuration decreases nominal flow rate from 4 GPM (15 LPM) to 3.2 GPM (12 LPM)
Please consult the “Troubleshooting” section of the system manual to diagnose any issues you may be experiencing. The manual can be found under the “Technical Documents” tab. If you need additional assistance feel free to reach out via the contact form below or by phone (+1-877-425-4239) during AXI International’s operating hours (Monday – Friday, 8am – 5pm EST).
