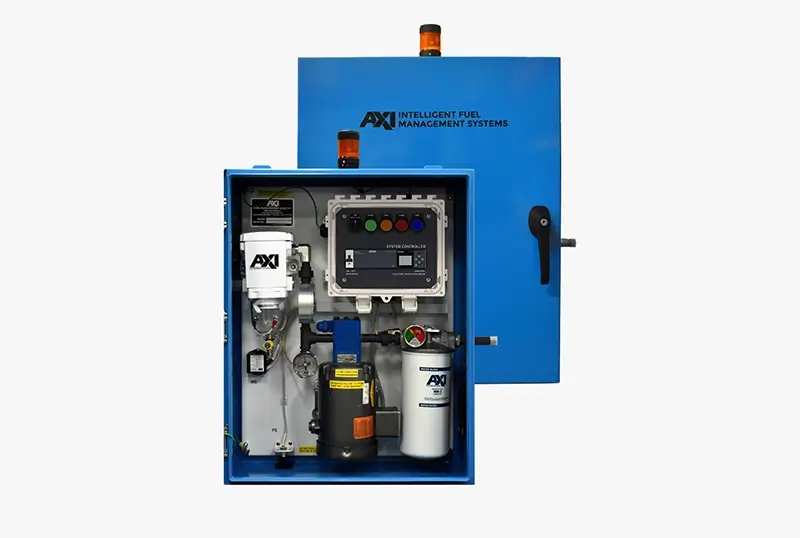

STS 6000 SX-F

Fuel Maintenance System

  • Automatically removes contaminants from fuel storage tanks through user-scheduled filtration (2.5 GPM flow rate)
  • Notifies users of routine maintenance or system faults such as needed filters changes or flow restrictions
  • NEMA 3R rated enclosure for indoor and outdoor installations
  • Drip basin with built-in leak detection
  • Field connections for external integrations such as remote monitoring and system shutdown capabilities
  • Robust set of available upgrade options
Product Details
Product Specifications
Technical Documents
Troubleshooting
The STS 6000 SX-F is a programmable, fully automated, fuel maintenance system that removes water, sludge, and other contaminants from fuel storage tanks through routine filtration. The system’s NEMA rated enclosure allows for both outdoor and indoor installations by protecting the system from falling rain, sleet, snow, and external ice formation. With a 2.5 GPM flow rate, the STS 6000 SX-F can polish up to 1,200 gallons (4,543 liters) of fuel in a runtime of 8-hours. Robust system upgrade options are available for this system and are outlined below.

System Features:

Automated Filtration
Establish a fuel polishing runtime schedule with up to three start and stop times for each day of the week
Smart System Alarms
Automatic system shutdown with notifications of needed maintenance or system faults
Remote Monitoring
Available system integration with external monitoring systems for observation of system statuses
NEMA 3R Rated Enclosure
Protects system components from falling rain, sleet, snow, and external ice formation

System Options:

NEMA 4 Rated Enclosure
Gain additional protection against falling dirt, windblown dust, splashing water, and hose-directed water
NEMA 4X Rated Enclosure
Gain additional protection against corrosion with a stainless steel enclosure
Manual Additive Injection
Manually draw additive into the polisher with a dedicated supply port and ball valve
Enclosure Heater
Prevent the build up of condensation inside the system enclosure due to temperature changes
Nominal Flow Rate
2.5 GPM/150 GPH (9.5 LPM/567.8 LPH)
Primary Filter
10 or 30μ Particulate or 60μ Stainless Steel Screen with Centrifugal Water Separator
Secondary Filter
3, 10 or 25μ Fine Filter or 3, 10μ Water Block
Fuel Conditioner
LG-X 500 Inline Magnetic Conditioner
Pump
1/3 HP Spur Gear Pump
System Controller
SFC50 Smart Filtration Controller with Safety and Alarm Features
Power *
120V/60Hz/1Ph or 230V/50Hz/1Ph
Plumbing
Black Iron
Ports
1/2” NPT In, 1/2” NTP Out
System Enclosure
NEMA 3R Rated Powder Coated (Standard), NEMA 4, or NEMA 4X Rated Stainless Steel
Controller Enclosure
NEMA 4 and UL408a Rated
Dimensions
≈ 30” x 24“ x 10” (76 x 61 x 25 cm) (H x W x D)
Weight
≈ 190 lbs (86.2 kg)
* 50 Hz configuration decreases nominal flow rate from 2.5 GPM (9.5 LPM) to 2 GPM (7.6 LPM)
Please consult the “Troubleshooting” section of the system manual to diagnose any issues you may be experiencing. The manual can be found under the “Technical Documents” tab. If you need additional assistance feel free to reach out via the contact form below or by phone (+1-877-425-4239) during AXI International’s operating hours (Monday – Friday, 8am – 5pm EST).

    Product Details

    The STS 6000 SX-F is a programmable, fully automated, fuel maintenance system that removes water, sludge, and other contaminants from fuel storage tanks through routine filtration. The system’s NEMA rated enclosure allows for both outdoor and indoor installations by protecting the system from falling rain, sleet, snow, and external ice formation. With a 2.5 GPM flow rate, the STS 6000 SX-F can polish up to 1,200 gallons (4,543 liters) of fuel in a runtime of 8-hours. Robust system upgrade options are available for this system and are outlined below.

    System Features:

    Automated Filtration
    Establish a fuel polishing runtime schedule with up to three start and stop times for each day of the week
    Smart System Alarms
    Automatic system shutdown with notifications of needed maintenance or system faults
    Remote Monitoring
    Available system integration with external monitoring systems for observation of system statuses
    NEMA 3R Rated Enclosure
    Protects system components from falling rain, sleet, snow, and external ice formation

    System Options:

    NEMA 4 Rated Enclosure
    Gain additional protection against falling dirt, windblown dust, splashing water, and hose-directed water
    NEMA 4X Rated Enclosure
    Gain additional protection against corrosion with a stainless steel enclosure
    Manual Additive Injection
    Manually draw additive into the polisher with a dedicated supply port and ball valve
    Enclosure Heater
    Prevent the build up of condensation inside the system enclosure due to temperature changes

    Product Specifications

    Nominal Flow Rate
    2.5 GPM/150 GPH (9.5 LPM/567.8 LPH)
    Primary Filter
    10 or 30μ Particulate or 60μ Stainless Steel Screen with Centrifugal Water Separator
    Secondary Filter
    3, 10 or 25μ Fine Filter or 3, 10μ Water Block
    Fuel Conditioner
    LG-X 500 Inline Magnetic Conditioner
    Pump
    1/3 HP Spur Gear Pump
    System Controller
    SFC50 Smart Filtration Controller with Safety and Alarm Features
    Power *
    120V/60Hz/1Ph or 230V/50Hz/1Ph
    Plumbing
    Black Iron
    Ports
    1/2” NPT In, 1/2” NTP Out
    System Enclosure
    NEMA 3R Rated Powder Coated (Standard), NEMA 4, or NEMA 4X Rated Stainless Steel
    Controller Enclosure
    NEMA 4 and UL508a Rated
    Dimensions
    ≈ 30” x 24“ x 10” (76 x 61 x 25 cm) (H x W x D)
    Weight
    ≈ 190 lbs (86.2 kg)
    * 50 Hz configuration decreases nominal flow rate from 2.5 GPM (9.5 LPM) to 2 GPM (7.6 LPM)

    Technical Documents

    Troubleshooting

    Please consult the “Troubleshooting” section of the system manual to diagnose any issues you may be experiencing. The manual can be found under the “Technical Documents” tab. If you need additional assistance feel free to reach out via the contact form below or by phone (+1-877-425-4239) during AXI International’s operating hours (Monday – Friday, 8am – 5pm EST).
