Net Fuel Meter
Fuel Consumption Monitored.
Powered by Coriolis sensing technology.
System Features
Compare Solutions
Best-In-Class Precision
Powered by Coriolis sensing technology
Flowrate + Density + Temperature
Self
Calibration
Trusted Calculations
True Burn Rate
Remaining Runtime
0 Added Failure
Points
No Gears.
No Maintenance.
No Problems.
Shared Controls
Shared Savings
System Specifications
Technical Documents
Net Fuel Meter
Construction
316L Stainless Steel
Flow Rate (Min - Max)
0.3 GPM (1.1 LPM) - 7.5 GPM (28.4 LPM)
Max Pressure Drop
3.2 PSIG @7.5 GPM, 0.13 PSIG @1GPM
Reliability
0.5% - Mass Flow and 0.01 g/cc - Density
Ports
1” ORFS Male / 1” Female NPT
Power
120 VAC
Dimensions
≈ 36” x 30“ x 10” (H x W x D)

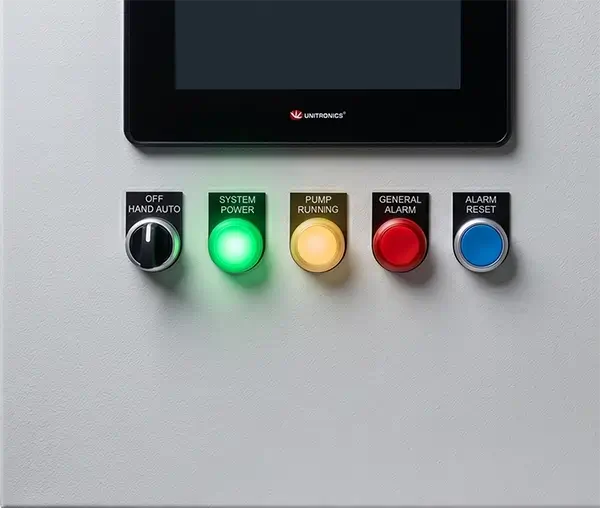

PLC Controller
Function
Data Processing, Storage, & Transfer
Interface
7” HMI Touchscreen
Communication
Modbus TCP/IP
Controls Approvals
UL 508A
Tank Level Transmitter
(Upgrade Option)
Tank Port
2" NPT
Signal
4-20 mA HART®
Data Output
US Gal.

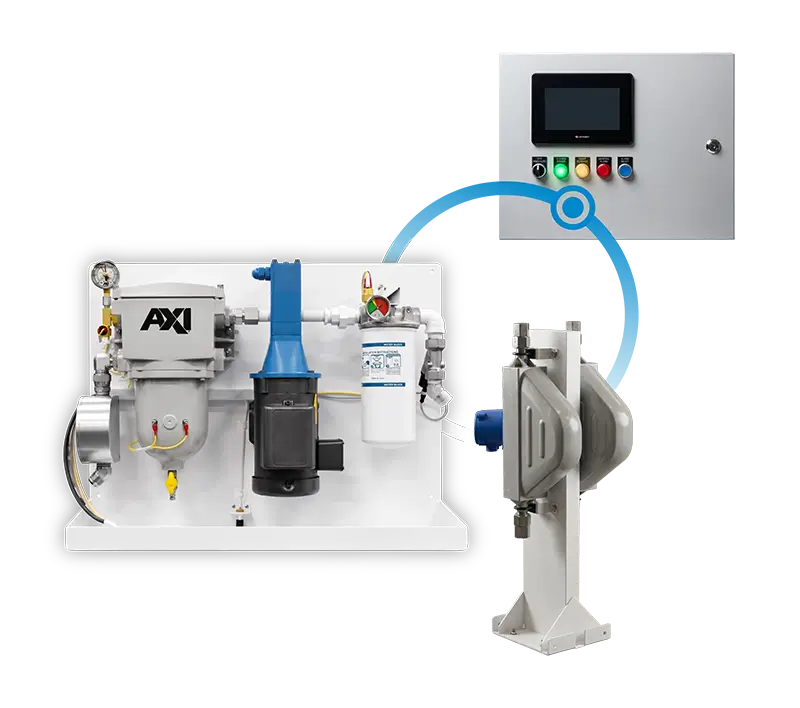

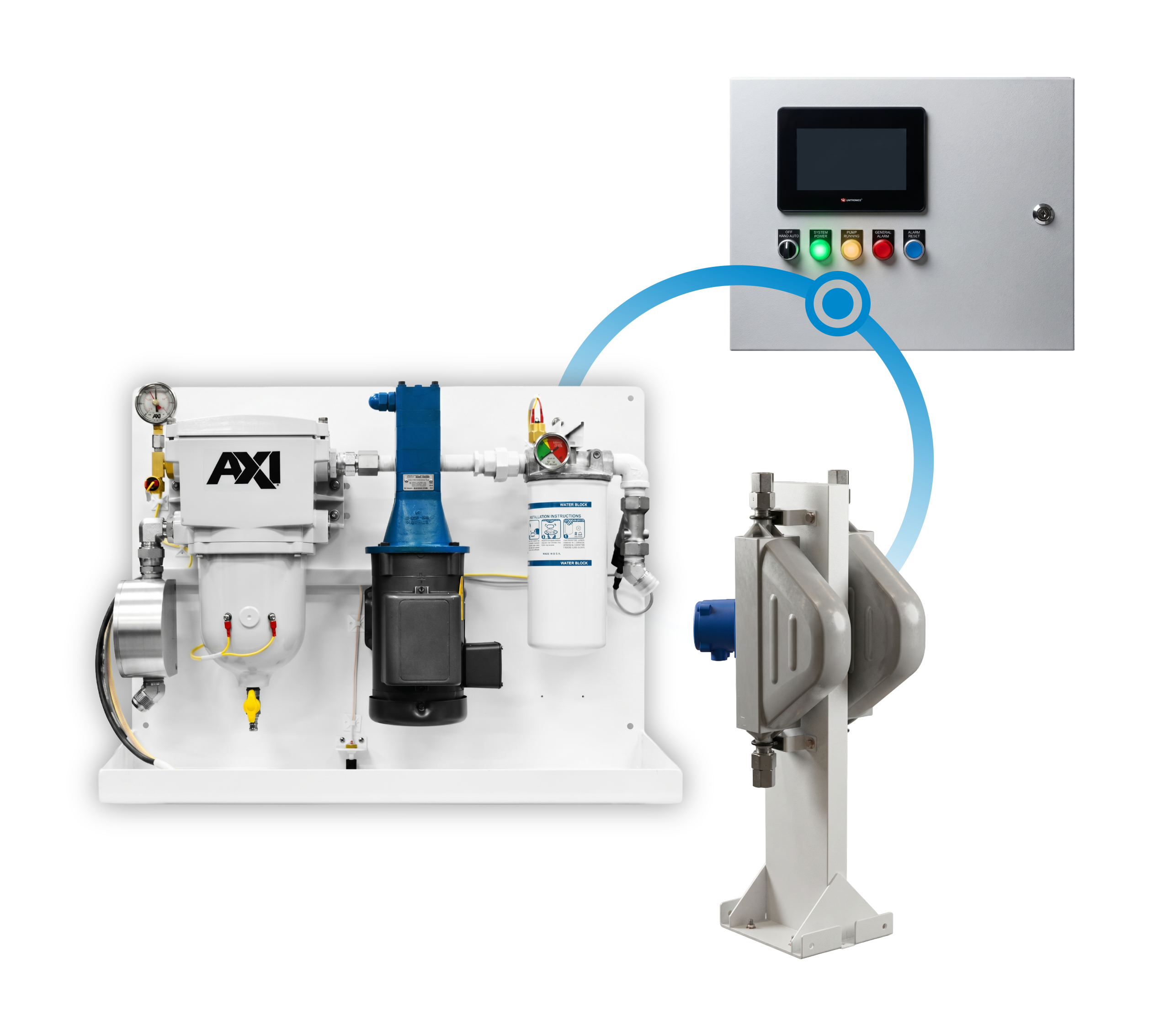

Seemless Integration
The Net Fuel Meter is designed to be a standalone solution or can be effortlessly paired with our FPS fuel polishing systems. In this configuration, both systems share unified controls for added simplicity and cost savings.
Net Fuel Meter Price Request
Enter your name, email, and location and the proper AXI representative will reach out shortly.
Others
Data Collected
Flowrate
Density
Temperature
Data Outputs
True Burn Rate Calculation 1
Remaining Fuel Level(s) 2
Remaining Runtime 2
System Features
Self Calibration
No Gears/Maintenance
0 Added Failure Points
Integration FPS Controls 3
1. Accounts for variables that may alter burn rate calculations derived exclusively from supply and return flow rates.
2. Available with system upgrade option.
3. NFM can share unified controls with FPS fuel polishing systems if purchased together.
